Belt Conveyor Roller Bearing Housing Heavy Steel Conveyor Roller With Seals
Applicable Industries:
Building Material Shops,
Manufacturing Plant,
Machinery Repair Shops,
Food & Beverage Factory,
Construction works ,
Energy & Mining
Specification:
| Bearing |
Shaft Diameter |
Pipe O.D. |
Bearing Housing O.D. |
Upper Bore Diameter |
Bottom Bore Diameter |
Bearing O.D. |
Depth |
Thickness |
| 6204 |
20 |
63 |
59.5 |
47.1 |
35 |
47 |
42.5 |
2.5 |
| 76 |
72 |
2.5 |
| 89 |
83/84/85 |
2.5 |
| 102 |
97 |
2.5/3.0 |
| 108 |
103 |
2.5/3.0 |
| 114 |
109/110 |
2.5/3.0 |
| 127 |
121/122 |
2.5/3.0 |
| 133 |
127/128 |
2.5/3.0 |
| 140 |
134/135/136 |
2.5/3.0 |
| 152 |
146/147 |
2.5/3.0 |
| 159 |
152/153 |
2.5/3.0 |
| 6205 |
25 |
76 |
72 |
52.1 |
40 |
52 |
45 |
2.5 |
| 89 |
83/84/85 |
2.5 |
| 102 |
97 |
2.5/3.0 |
| 108 |
103 |
2.5/3.0 |
| 114 |
109/110 |
2.5/3.0 |
| 127 |
121/122 |
2.5/3.0 |
| 133 |
127/128 |
2.5/3.0 |
| 140 |
134/135/136 |
2.5/3.0 |
| 152 |
146/147 |
2.5/3.0 |
| 159 |
152/153 |
2.5/3.0 |
1). Bearing size: 6204, 6205, 6305, 6206, 6306, 6307, 6308
2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing
3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance
4). Standard: ISO,MA
5). Production capacity: 2000pcs/day.
Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
Product features
Conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP
Roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.
Conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.
Material

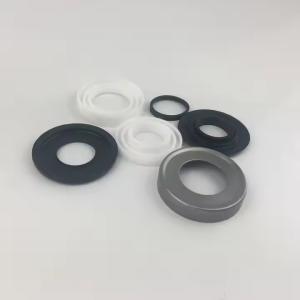

Full Set of the TK Series Bearing housing and seals Including:
Materials :
♦ Bearing Housing: SPHC
♦ Sealing Ring: Nylon PA6
♦ Labyrinth Seal: POM
♦ Outer Cap: SPCC
♦ Dust Cover: Nylon PA6
♦ Rubber seal ring
