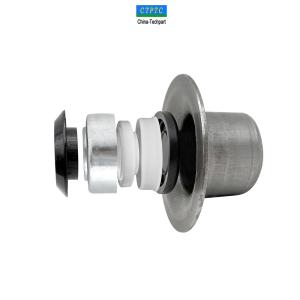

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap
Detailed specification:
| Bearing | Pipe Dia (mm) | Shaft (mm) | Flange (mm) | Caliber (mm) | Hole Dia (mm) | Bearing Seat Dia (mm) | Deepness(mm) | Thickness(mm) |
| 6204 | 63 | 20 | 59.5 | 47.1 | 35 | 47 | 42.5 | 2.5 |
| 76 | 72 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
| 6205 | 76 | 25 | 72 | 52.1 | 40 | 52 | 45 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
Material for each part :
1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Inner Sealing Ring: Nylon PA6
3. Male/Female Labyrinth Seal: POM
4. Cover Cap: Carbon Steel SPCC
5. Protective Shield: Nylon PA6
Product (TK Series Bearing Housing and Seals):
Our roller bearing housing and the relative seals have the advange of high precision, good gloss,
without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel
maker in China.
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
Packing:
Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,
we could also packed the items as requested.
Customer Visiting:
Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,
Chile, Mexico, Colombia, Thailand, Indonesia.,etc.
Welcome to visit our factory, and we promise to provide you with our best products and services.
Advantages for our bearing housing:
1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its
precision tolerance reaches M7.
2. Inner sealing and protective is made from PA6.
It has strong wear and abrasion resistance and high lubricity
3. Female and male labyrinth are made from POM.
They have strong wear and abrasion resistance ,high lubricity and high strength.
4. The material of cover cap is SPCC.
Its yield strength and tensile strength is excellent.
