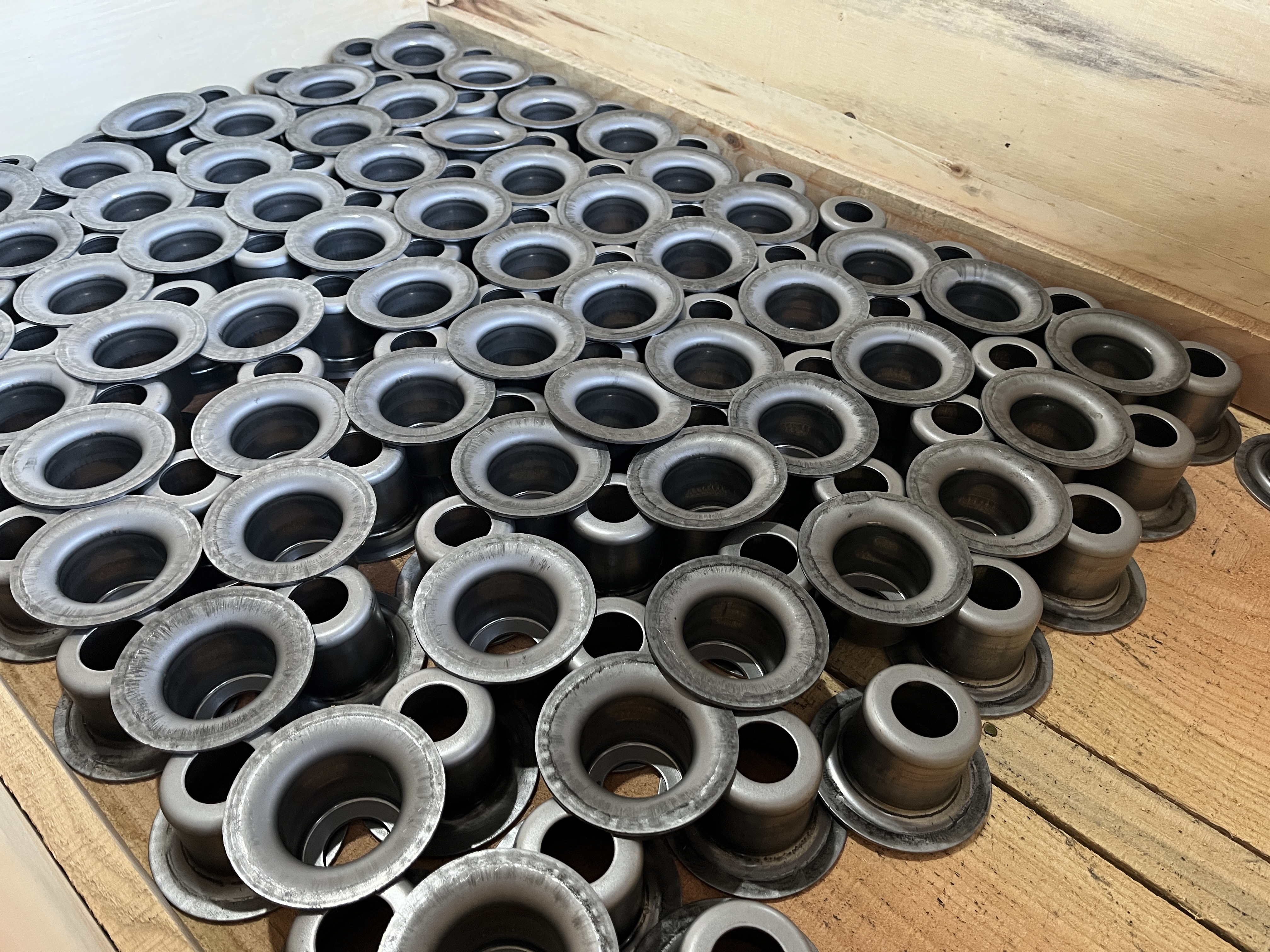

TK6204-89mm 2.5mm SPHC Pressed Flange Bearing End Cap Labyrinth Shaft Seal
1. TK6304-89 Bearing Housing Description
1. Bearing: 6204
2. Pipe OD: 89mm
3. Bearing housing OD:83/84/85 mm
3. Thickness:2, 2.5 or 3 mm
Specification:
| Bearing | Shaft Diameter | Pipe O.D. | Bearing Housing O.D. | Upper Bore Diameter | Bottom Bore Diameter | Bearing O.D. | Depth | Thickness |
| 6204 | 20 | 63 | 59.5 | 47.1 | 35 | 47 | 42.5 | 2.5 |
| 76 | 72 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
2. Product features
idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP
idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.
idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.
3. Material

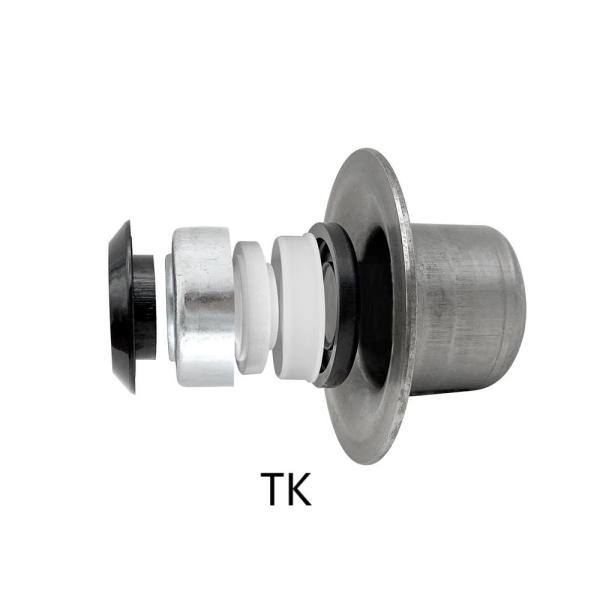

Full Set of the TK Series Bearing housing and seals Including:
Materials :
♦ Bearing Housing: SPHC
♦ Sealing Ring: Nylon PA6
♦ Labyrinth Seal: POM
♦ Outer Cap: SPCC
♦ Dust Cover: Nylon PA6
Our Advantage:
1. The life time: more than 30000 hours
2. Samples for testing are available.
3. Minimum revoiving resistance
4. Small maintain work
5. High load capability
6. The more relaxed payment terms
7. Dust proof & water proof
4. How to get sample
our ssamples are all free, if you confirm the type and size, just tell us, we prepare samples and send to you, but you pay the logistic cost
5. How to get price
1. idle conveyor Roller diameter
2. idle roller Bearing type
3. idle Bearing end cap diameter
4. idle housing Thickness
Please confirm type and size ,And then we can give you a quotation for you.
6. Our Service
1. We can press your logo onto your goods.
2. We can produce the non-standard housing according to your drawing.
3. We can offer the samples and drawings for your reference.
4. We can offer you the most competitive price according to your situation.
5. We promise not disclose your secret documents or information to the third one definitely.
7. Our Strengths
1. We are the professional manufacturer with more than 7 years experiences
2. The professional equipment and teams tested the goods strictly
before delivery, you can trust the goods quality.
3. Choose us will avoid many pitfalls of international transactions.
4. Our products has been exported to Russia, south Africa,and the US,
Korea.customer has built long term business relationship with us.
8. Package
FAQ
1. How can I get samples?
·We can supply some free samples (total value under 10 US dollars) if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.
·If the total value of samples is more than 10 US dollars, we'd like to ask you to pay for the samples and courier freight, we will send the samples to you after receipt of your payment.
·If you don't have courier account, you can send your courier to collect samples from our company, or send us the samples charge together with the courier cost by T/T.
·The charge both sample and courier cost will be return you once the mass order placed.
2. How much the courier freight will be charged for the samples?
·Courier freight depends on the quantity, weight, and carton size and your area. Our courier agent TNT and DHL will be save you 20% total courier charges because we have a long-term agreement. However, you also can use your courier company to pick up.
3. How can I get your quotation sheet?
· Please send us your inquiry with our products model number by email or fax, we will offer you our price list, offer sheet and order information within one working day.
4. What’s your usual payment term for orders?
·T/T30% as the deposit, and T/T 70% balance paid before loading.
5. What’s the warranty of your products?
·Usually we guarantee one year after delivery date, but depending on the specified product.
