High Precision Conveyor Roller Pressed Flange Bearing Housing TK6204-127
| Basic Specification: |
| Bearing | Pipe Dia (mm) | Shaft (mm) | Flange (mm) | Caliber (mm) | Hole Dia (mm) | Bearing Seat Dia (mm) | Deepness(mm) | Thickness(mm) |
| 6204 | 63 | 20 | 59.5 | 47.1 | 35 | 47 | 42.5 | 2.5 |
| 76 | 72 | 2.5 |
| 89 | 83/84/85 | 2.5 |
| 102 | 97 | 2.5/3.0 |
| 108 | 103 | 2.5/3.0 |
| 114 | 109/110 | 2.5/3.0 |
| 127 | 121/122 | 2.5/3.0 |
| 133 | 127/128 | 2.5/3.0 |
| 140 | 134/135/136 | 2.5/3.0 |
| 152 | 146/147 | 2.5/3.0 |
| 159 | 152/153 | 2.5/3.0 |
Material for Each Part:
1. Bearing Housing: Pickled steel from Baosteel Group
2. Inner Seal: Nylon PA6
3. Labyrinth Seals: POM
4. Metal Cover: Carbon Steel SPCC
5. Protective Shell: Nylon PA6

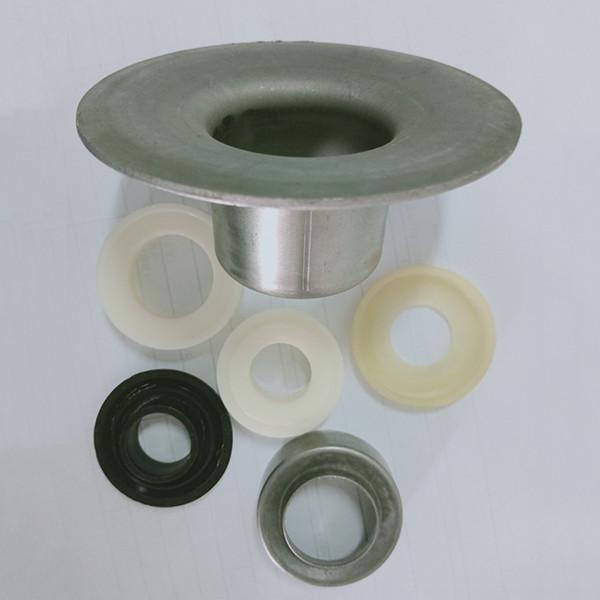

Physical Products Show:
Our roller bearing housing and the relative seals have the advange of high precision, good gloss,
without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the
best steel maker in China.
Factory Surroundings:
We work on manufacturing & exporting excellent bearing housing and seals for over 15 years,
and have passed ISO9001-2008 quality management system certification.
We own 4 advanced production lines which make us the largest and most professional
bearing housing maker in China.
We have a target for Global Market :
Our business has been expanded to over 30 countries over the world such as Russia,
USA, Netherlands,Chile, Mexico, Colombia, Thailand, Indonesia.,etc.
Welcome to visit our factory, and we will provide you with our best products and service.
