TK Roller Bearing Mini Nylon Ball Transfer Bearing Conveyor Roller Bearing Housing
Wide Industry Compatibility: This product is suitable for various industries, including building material shops, machinery repair shops, manufacturing plants, energy & mining, and more, making it a versatile solution for different sectors.
Comprehensive Warranty: We provide a 1-year warranty on our product, giving you peace of mind and assurance of quality, as requested by the user.
Multiple Bearing Options: The product is available with various bearing options, including 6204/6205/6206/6305/6306/6307/6308, allowing for flexibility in selection to match your specific requirements.
Parameter:
| Model | Specification | Flange mm | Bearing seat dia mm | Caliber mm | Hole mm | Deep dia mm | Height mm | Thickness mm |
| TK | 6204-89 | 84 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-108 | 103 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-133 | 128 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-159 | 153 | 47 | 47.1 | 25 | 45 | 48 | 3 |
| TK | 6205-89 | 84 | 52 | 52.1 | 30 | 46 | 48.5 | 3 |
| TK | 6205-108 | 103 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-133 | 128 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-159 | 153 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6305-108 | 103 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-133 | 128 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-159 | 153 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6306-108 | 103 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-133 | 128 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-159 | 153 | 72 | 72.1 | 40 | 51 | 55 | 4 |
| TK | 6307-133 | 128 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6307-159 | 153 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6308-133 | 128 | 90 | 90.1 | 45 | 55 | 59 | 4 |
| TK | 6308-159 | 153 | 90 | 90.1 | 45 | 55 | 59 | 4 |
| TK | 6308-194 | 188 | 90 | 90.1 | 45 | 55 | 59 | 4 |
Material:
1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Inner Sealing Ring: Nylon PA6
3. Male/Female Labyrinth Seal: POM
4. Cover Cap: Carbon Steel SPCC
5. Protective Shield: Nylon PA6
Product (TK Series Bearing Housing and Seals):
Our roller bearing housing and the relative seals have the advange of high precision, good gloss,
without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel
maker in China.
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
Application:
Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power plant
and any other bulk material handing project.
Customer Visiting:
Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,
Chile, Mexico, Colombia, Thailand, Indonesia.,etc.
Welcome to visit our factory, and we promise to provide you with our best products and services.
Why choose our bearing housing?
1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its
precision tolerance reaches M7.
2. Inner sealing and protective is made from PA6.
It has strong wear and abrasion resistance and high lubricity
3. Female and male labyrinth are made from POM.
They have strong wear and abrasion resistance ,high lubricity and high strength.
4. The material of cover cap is SPCC.
Its yield strength and tensile strength is excellent.
|
|

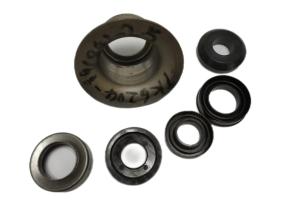

TK Roller Bearing Mini Nylon Ball Transfer Bearing Conveyor Roller Bearing Housing Images
|
