Idler seals and end caps are critical protective components used in conveyor idler rollers. They help ensure the reliable operation and extended service life of idlers by shielding the internal bearing assembly from external contaminants such as dust, water, chemicals, and debris. These accessories are especially important in harsh environments like mining, cement, and bulk material handling industries.

1. Idler Seals

Function:

• Protect the bearing assembly inside the idler roller.

• Prevent ingress of dust, dirt, moisture, and corrosive particles.

• Retain lubrication (grease) within the bearing chamber.

• Minimize wear and extend bearing life.

Types of Seals:

• Labyrinth Seals:

  • Use a series of interlocking grooves or paths.

  • Rely on tight clearances and multiple turns to block contaminants.

  • Very effective in dusty and abrasive environments.

  • Non-contact design means low friction and long life.

• Rubber Contact Seals:

  • Made from elastomeric materials (e.g., nitrile or polyurethane).

  • Provide a tight, direct seal against the shaft or housing.

  • Offer excellent sealing, but may generate more friction than labyrinth types.

  • Often used in wetter environments.

• Triple or Multi-Lip Seals:

  • Combine contact and labyrinth principles.

  • Provide multi-layer defense against contaminants.

  • Ideal for severe-duty applications.

Design Considerations:

• Must accommodate rotational movement of the idler.

• Designed for maintenance-free operation in most cases.

• Should be compatible with temperature range and chemical exposure of the environment.

2. End Caps

Function:

• Serve as the outer housing or enclosure for the end of the idler roller.

• Hold the bearing and seal assembly in place.

• Provide structural support and alignment for the rotating shaft.

• Assist in retaining the internal grease.

Materials:

• Steel (galvanized or powder-coated) – used in heavy-duty applications.

Features:

• Often press-fitted or welded into the idler shell.

Combined Role of Seals and End Caps:

• Together, the seals and end caps form a barrier system that:

  • Shields the bearing from environmental threats.

  • Prevents lubricant loss.

  • Ensures the roller operates quietly, efficiently, and reliably.

Applications:

• Mining conveyors handling coal, ore, and gravel.

• Cement and aggregate plants with abrasive dust.

• Bulk material handling for grain, fertilizer, salt, and chemicals.

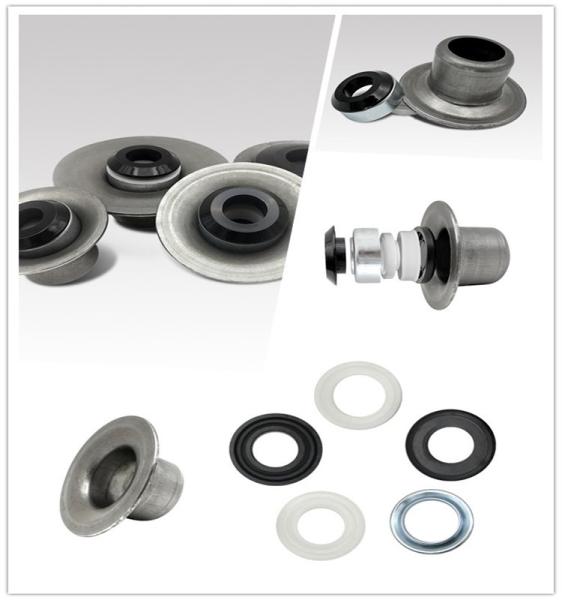

Idler Seals and End Caps Images
