Steel Bearing Cover Conveyor Bearing Housing TK6305-89 Factory Supply
Bearing Housing Specification
| Model | Specification | Flange mm | Bearing seat dia mm | Caliber mm | Hole mm | Deep dia mm | Height mm |
| TK | 6204-89 | 84 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-108 | 103 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-133 | 128 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-159 | 153 | 47 | 47.1 | 25 | 45 | 48 |
| TK | 6205-89 | 84 | 52 | 52.1 | 30 | 46 | 48.5 |
| TK | 6205-108 | 103 | 52 | 52.1 | 30 | 46 | 49 |
| TK | 6205-133 | 128 | 52 | 52.1 | 30 | 46 | 49 |
| TK | 6205-159 | 153 | 52 | 52.1 | 30 | 46 | 49 |
| TK | 6305-108 | 103 | 62 | 62.1 | 35 | 49 | 52 |
| TK | 6305-133 | 128 | 62 | 62.1 | 35 | 49 | 52 |
| TK | 6305-159 | 153 | 62 | 62.1 | 35 | 49 | 52 |
| TK | 6306-108 | 103 | 72 | 72.1 | 40 | 51 | 54 |
| TK | 6306-133 | 128 | 72 | 72.1 | 40 | 51 | 54 |
| TK | 6306-159 | 153 | 72 | 72.1 | 40 | 51 | 55 |
| TK | 6307-133 | 128 | 80 | 80.1 | 45 | 53 | 57 |
| TK | 6307-159 | 153 | 80 | 80.1 | 45 | 53 | 57 |
| TK | 6308-133 | 128 | 90 | 90.1 | 45 | 55 | 59 |
| TK | 6308-159 | 153 | 90 | 90.1 | 45 | 55 | 59 |
Product Features:
Roller Model: TK, TKII, DTII, TD75
Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,
6309, 6310.etc.
Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,
194, 219,etc.
Material:
1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Inner Sealing Ring: Nylon PA6
3. Male/Female Labyrinth Seal: POM
4. Cover Cap: Carbon Steel SPCC
5. Protective Shield: Nylon PA6

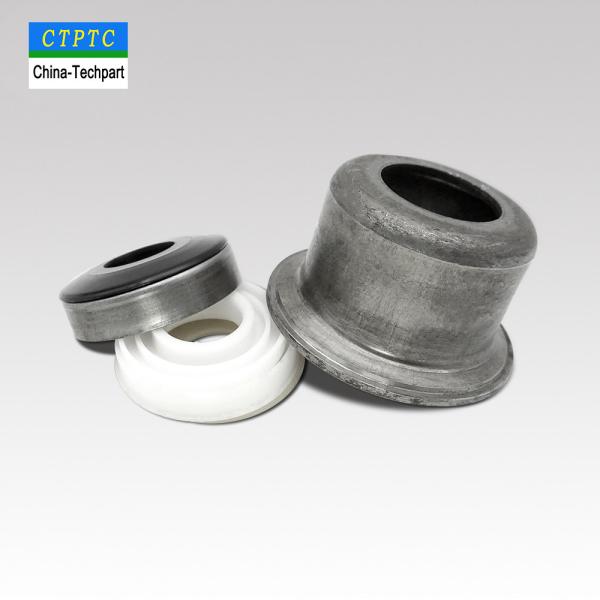

Product (TK Series Bearing Housing and Seals):
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
Packing:
Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,
we could also packed the items as requested.
Application:
Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power
plant and any other bulk material handing project.
Welcome to visit our factory, and we promise to provide you with our best products and services.
Why choose our bearing housing?
1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its
precision tolerance reaches M7.
2. Inner sealing and protective is made from PA6.
It has strong wear and abrasion resistance and high lubricity
3. Female and male labyrinth are made from POM.
They have strong wear and abrasion resistance ,high lubricity and high strength.
4. The material of cover cap is SPCC.
Its yield strength and tensile strength is excellent.
