Punch Press Steel Roller Bearing Housing TK6204 - 114 Quality Conveyor Parts
Bearing Housing Specification
| Model | Specification | Flange mm | Bearing seat dia mm | Caliber mm | Hole mm | Deep dia mm | Height mm | Thickness mm |
| TK | 6204-89 | 84 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-108 | 103 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-133 | 128 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-159 | 153 | 47 | 47.1 | 25 | 45 | 48 | 3 |
| TK | 6205-89 | 84 | 52 | 52.1 | 30 | 46 | 48.5 | 3 |
| TK | 6205-108 | 103 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-133 | 128 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-159 | 153 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6305-108 | 103 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-133 | 128 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-159 | 153 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6306-108 | 103 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-133 | 128 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-159 | 153 | 72 | 72.1 | 40 | 51 | 55 | 4 |
| TK | 6307-133 | 128 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6307-159 | 153 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6308-133 | 128 | 90 | 90.1 | 45 | 55 | 59 | 4 |
| TK | 6308-159 | 153 | 90 | 90.1 | 45 | 55 | 59 | 4 |
| TK | 6308-194 | 188 | 90 | 90.1 | 45 | 55 | 59 | 4 |
Product Features:
Roller Model: TK, TKII, DTII, TD75
Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,
6309, 6310.etc.
Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,
194, 219,etc.

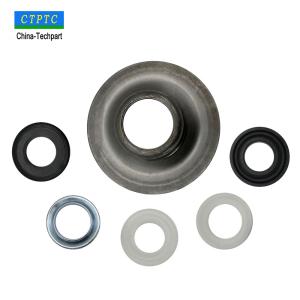

Product (TK Series Bearing Housing and Seals):
Our bearing housing and the relative seals are of high precision, low tolerance. Steel materials are from Shanghai
Baosteel Group, which is the best steel maker in China, so quality is guaranteed.
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
Packing:
Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,
we could also packed the items as requested.
Application:
Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power
plant and any other bulk material handing project.
Customer Visiting:
Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,
Chile, Mexico, Colombia, Thailand, Indonesia.,etc.
Why choose our bearing housing?
1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its precision tolerance reaches M7.
2. Inner sealing and protective is made from PA6.
It has strong wear and abrasion resistance.
3. Female and male labyrinth are made from POM.
They have strong wear and abrasion resistance ,high lubricity and high strength.
4. The material of cover cap is SPCC.
Its yield strength and tensile strength is excellent.
