Roller Seals Bearing Seal TK6204 Series Labyrinth Seal Dust Proof
Bearing Housing Specification
| Model | Specification | Flange mm | Bearing seat dia mm | Caliber mm | Hole mm | Deep dia mm | Height mm |
| TK | 6204-89 | 84 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-108 | 103 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-133 | 128 | 47 | 47.1 | 25 | 45 | 47.5 |
| TK | 6204-159 | 153 | 47 | 47.1 | 25 | 45 | 48 |
| TK | 6205-89 | 84 | 52 | 52.1 | 30 | 46 | 48.5 |
Material:
1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Inner Sealing Ring: Nylon PA6
3. Male/Female Labyrinth Seal: POM
4. Cover Cap: Carbon Steel SPCC
5. Protective Shield: Nylon PA6

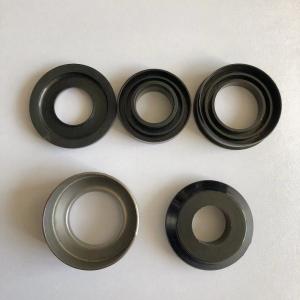

Product (TK Series Bearing Housing and Seals):
Our punch press bearing housing and the relative seals have the advange of high precision, good gloss,
without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel
maker in China, so quality is guaranteed.
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
Application:
Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power
plant and any other bulk material handing project.
Customer Visiting:
Welcome to visit our factory, and we promise to provide you with our best products and services.
